treegen-pinegen v1.5.3

🛡️ Antivirus Notice
This program may be flagged by some antivirus software because it’s a custom .exe generated with PyInstaller.
It does not contain any malware — you can check the source code yourself on GitHub.
If in doubt, run the .py version directly using Python.

🌲 treegen-pinegen v1.5.3

Procedural voxel tree generator for MagicaVoxel

Generate customizable .vox trees using palettes, sliders, and pure Python.

Built with Python, NumPy, and Pillow. The project uses a PyQt6 GUI (treegen_qt.py) which calls the shared core in worker modules.

✨ Features

• Five generators:
  • Treegen - oak-style branching tree generator
  • Pinegen - pine/conifer generator with cone-shaped leaf clusters
  • Birchgen - birch tree generator with slender trunks and spreading crown

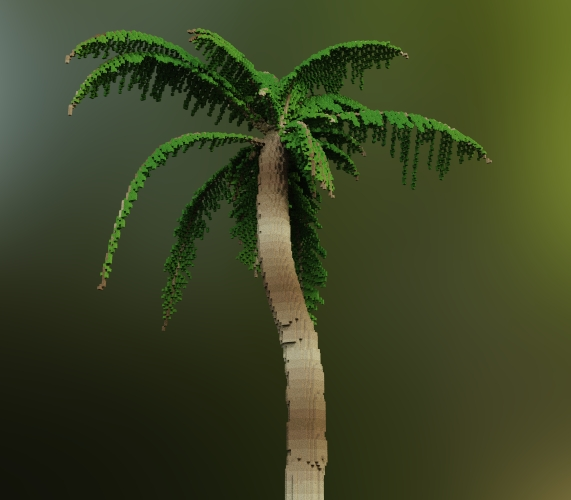

  • Palmgen - tropical palm generator (new)

• GUI:
  • PyQt6 UI: treegen_qt.py (menu, About dialog, inline status, tabbed interface)

• Real-time preview with multiprocessing (heavy generation in subprocesses for speed)
• Export to MagicaVoxel .vox via VoxExporter
• Randomize presets and deterministic generation via seed
• Organized output folders: output/tree/ and output/pine/
• "Open file after generation" option (platform-aware)
• Non-modal export status displayed above each preview in the PyQt UI

✨ Controls (implemented in the PyQt UI):

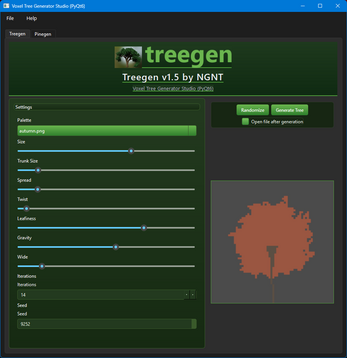

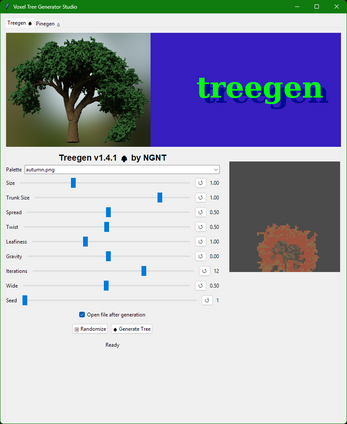

• Treegen sliders/controls and ranges:
  • Size: 0.1 — 3.0
  • Trunk Size: 0.1 — 1.2
  • Spread: 0.0 — 1.0
  • Twist (twisted): 0.0 — 1.0
  • Leafiness: 0.0 — 3.0
  • Gravity: -1.0 — 1.0
  • Wide: 0.0 — 1.0
  • Iterations: 5 — 15 (integer)
  • Seed: 1 — 9999

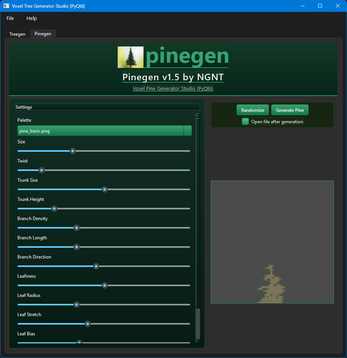

• Pinegen sliders/controls and ranges:
  • Size: 0.1 — 3.0
  • Twist (twisted): 0.0 — 4.0
  • Trunk Size: 1.0 — 3.0
  • Trunk Height: 0.0 — 5.0
  • Branch Density: 0.0 — 3.0
  • Branch Length: 0.0 — 3.0
  • Branch Direction: -5.0 — 5.0
  • Leafiness: 0.0 — 2.0
  • Leaf Radius: 1.0 — 4.0
  • Leaf Stretch: 0.5 — 3.0
  • Leaf Bias: -1.0 — 1.0
  • Seed: 1 — 9999

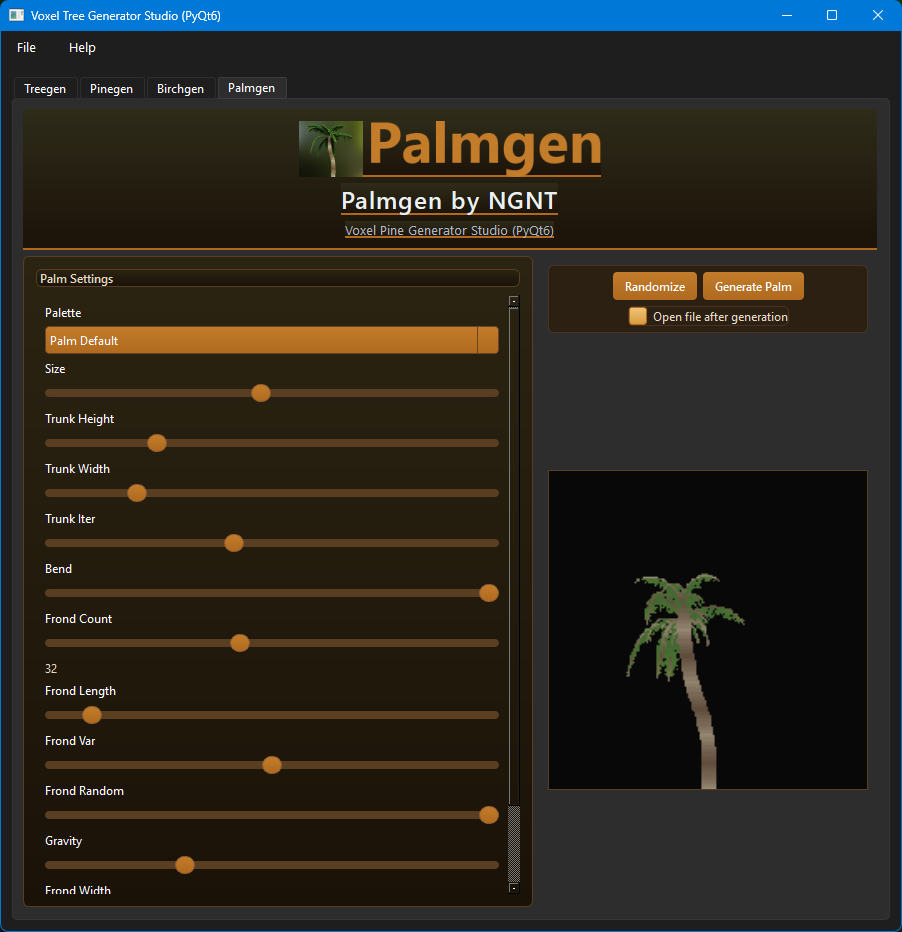

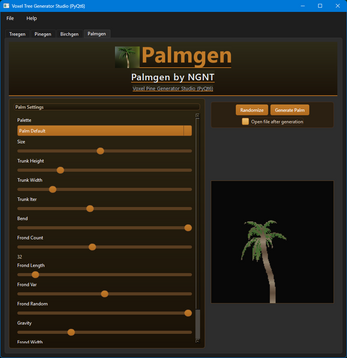

• Palmgen sliders/controls and ranges:




  • Size: 0.1 — 3.0
  • Trunk Height: 0.0 — 340.0
  • Trunk Width: 0.3 — 4.0
  • Trunk Iter: 12 — 80 (integer)
  • Bend: 0.0 — 1.0
  • Frond Count: 4 — 72
  • Frond Length: 0.1 — 3.0
  • Frond Var: 0.0 — 1.0
  • Frond Random: 0.0 — 1.0
  • Gravity: 0.0 — 1.0
  • Frond Width: 0.1 — 1.0
  • Seed: 1 — 9999

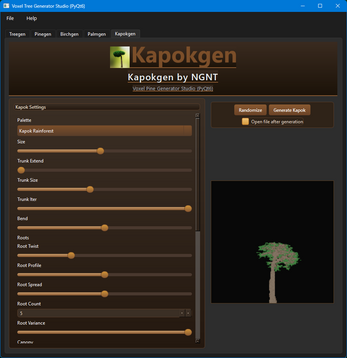

• Kapokgen sliders/controls and ranges (new):

  • Size: 0.1 — 3.0
  • Trunk Extend: 0.0 — 340.0
  • Trunk Size: 0.3 — 4.0
  • Trunk Iter: 8 — 40 (integer)
  • Bend: 0.0 — 1.0
  • Root Twist: 0.0 — 1.0
  • Root Profile: 0.0 — 1.0
  • Root Spread: 0.0 — 1.0
  • Root Count: 0 — 8 (integer)
  • Root Variance: 0.0 — 1.0
  • Canopy Iter: 5 — 15 (integer)
  • Wide: 0.0 — 1.0
  • Spread: 0.0 — 1.0
  • Canopy Twist: 0.0 — 1.0
  • Leaves: 0.0 — 3.0
  • Gravity: -1.0 — 1.0
  • Canopy Thick: 0.0 — 1.0
  • Canopy Profile: 0.0 — 1.0
  • Canopy Flat: 0.0 — 1.0
  • Canopy Start: 0.0 — 1.0
  • Seed: 1 — 9999

Other UI features (PyQt6 port)

• Menu bar: File → Close, Help → About (About shows app/version/credits)
• Inline status: export results appear above the preview (tree_dim_label/pine_dim_label/birch_dim_label)
• Preview uses worker modules and runs in a worker QThread with progress signals and cooperative cancellation
• Export runs in a separate process (ProcessPoolExecutor) and writes .vox files using VoxExporter
• Tabbed interface for easy switching between generators
• Previews update on startup, tab changes, and palette selections

🛠 How to Use:

1. Download and extract the ZIP

1. Run the .exe (or the Python script if you're on Linux/macOS)

2. Adjust the sliders and click "Generate"

3. Load the .vox file in Magicavoxel or drop it into your game!

Requirements for compilation

Minimum Python packages:

• Python 3.8+

• numpy
• pillow
• PyQt6

Install with pip:

pip install numpy pillow PyQt6

Running compilation

PyQt6 UI (primary):

python treegen_qt.py

Export & Output

• Exports produce .vox files compatible with MagicaVoxel and are saved to output/tree/oroutput/pine/.
• Filenames use timestamps (e.g., treegen_20231005_143022.vox) to ensure uniqueness without external counter files.

📜 License

MIT — Free to use, remix, and plant digital forests 🌳🌲

📜 Credits

Made by NGNT Creations.
